Testing for Bending and Torsion
The SinusJet GEN4 offers advanced capabilities: bending tests according to EN 13262, torsion tests, or combined loading with separate control for both natural modes.
Shortest Possible Response Time
The intelligent electronic control enables testing of rapidly changing load scenarios (including crack propagation tests).
Floating Specimen Design

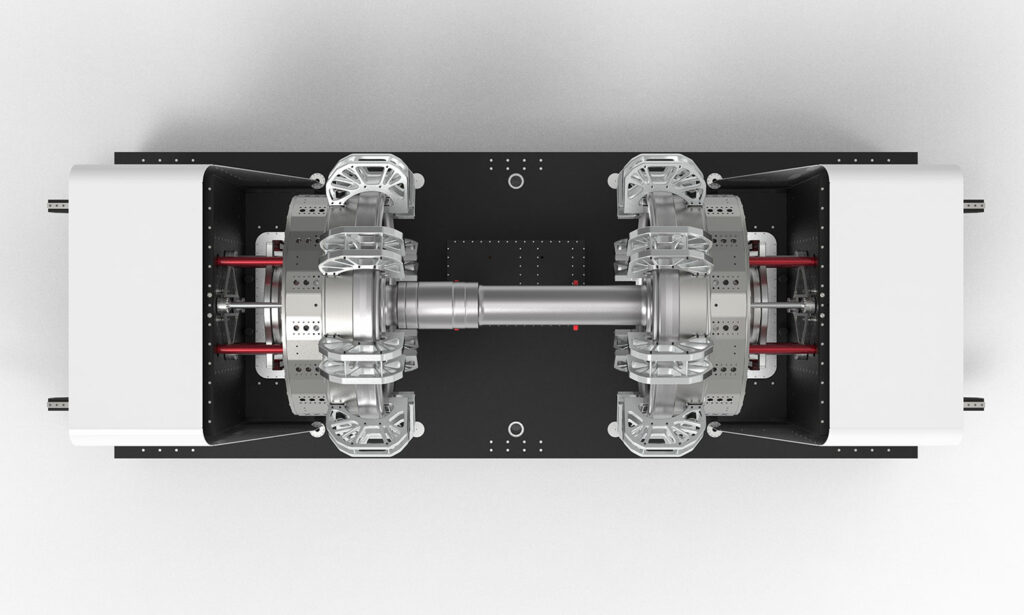

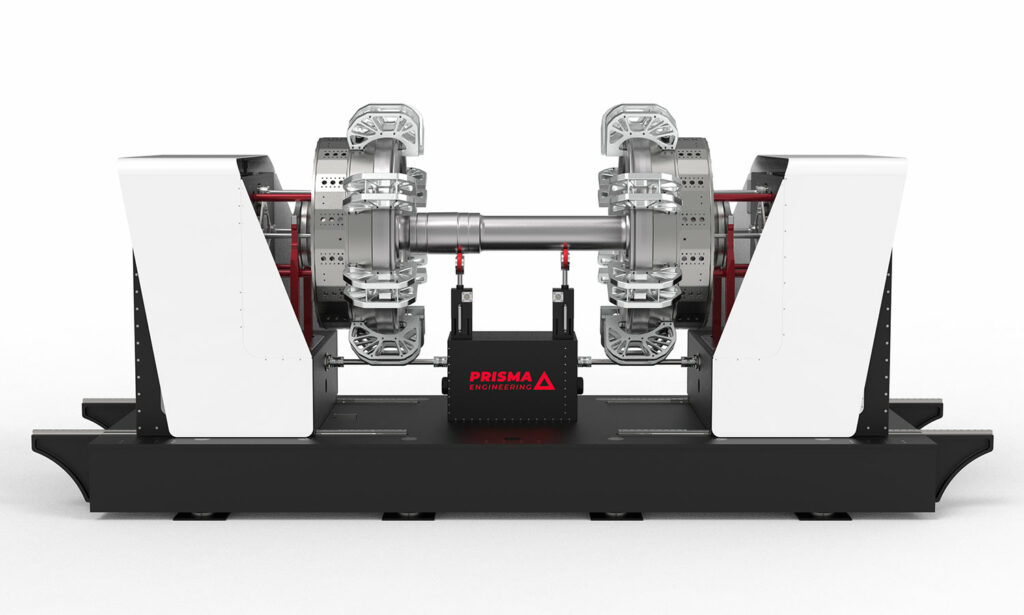

The horizontal and symmetrical design of the test stand allows for testing both sides of the specimen simultaneously, without interruption or the need for reconfiguration between tests.
Innovative Clamping System
The innovative clamping system enables quick and easy specimen changes. The specimens themselves do not need to be machined or equipped with special clamping discs. The machine is compatible with standard wheelsets that meet their final specifications.
High Testing Frequencies
The ideal frequency range of the SinusJet GEN4 is between 40-60 Hz.
Economical Operation
All specimens are excited close to their natural bending and torsion frequencies. This allows the test stand to generate the highest dynamic loads with low motor power (10 kW max.). The maximum test moment is 250 kNm (bending) and 100 kNm (torsion).
